Aftermarket upper control arms (UCAs) are a critical suspension correction, not just a performance upgrade. When you lift a vehicle 2 inches or more, you fundamentally alter its suspension geometry beyond what factory components can accommodate. This leads to poor handling, unsafe driving characteristics, and rapid tire wear. Aftermarket UCAs are designed to correct this geometry, restoring proper alignment, on-road stability, and off-road capability.
The Core Problem: How a Lift Disrupts Your Factory Suspension Geometry
You’ve just installed a lift kit or leveling kit, and your truck looks incredible. It has the aggressive stance and ground clearance you were after. But on the first drive, something feels… off. The steering feels vague, the truck wants to wander between lanes on the highway, and it doesn’t return to center easily after a turn. This isn’t your imagination; it’s a predictable result of changing your vehicle’s suspension geometry.
The independent front suspension (IFS) on most modern trucks and SUVs is a precise system. The upper and lower control arms, along with the steering knuckle, dictate the angle of your front wheels. Two of the most critical angles are caster and camber.
-

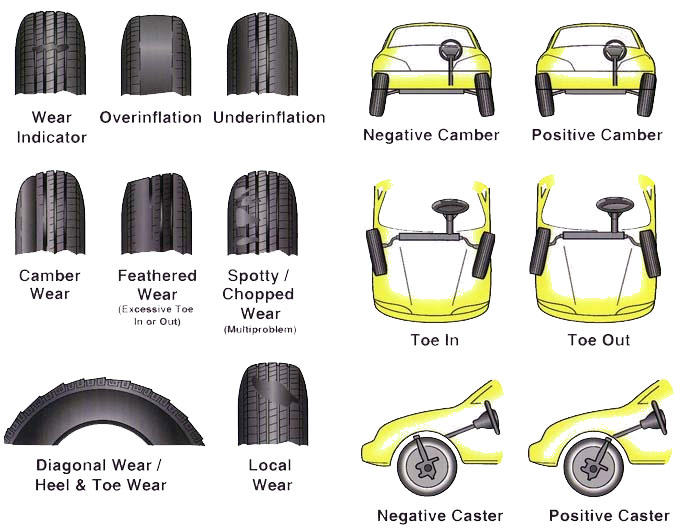

Camber / Caster infographic Camber: This is the vertical tilt of your wheel. When viewed from the front, if the top of the tire leans outward, it’s called positive camber. If it leans inward, it’s negative camber. After lifting a truck, the entire suspension is pushed downward, which forces the top of the tire outward. If the top of the wheel is farther out than the bottom, it is called positive camber; this is a common issue after lifting a vehicle’s suspension. This is a problem because excessive camber angle can lead to increased tire wear and impaired handling. The outer edge of your expensive new tires will wear down prematurely, and the vehicle will lose some of its cornering stability.
- Caster: This is the forward or backward tilt of the steering axis when viewed from the side. Think of the front forks on a bicycle—they are angled forward. This positive caster is what makes the bike stable and want to travel in a straight line. Your truck works the same way. When you lift the suspension, you effectively rotate the steering knuckle, reducing positive caster. This loss of caster is the direct cause of that highway wander and poor steering return-to-center you’re experiencing.
In essence, installing a lift kit—whether it’s with new shocks, coilovers, or simple spacers—stretches the factory geometry past its breaking point. The stock upper control arm is now at a severe angle, causing issues like ball joint binding at full droop and, most importantly, an inability to achieve correct alignment specs.
The Alignment Shop’s Dilemma: “We Did the Best We Could”
So, you take your newly lifted truck to an alignment shop. You come back an hour later, and the technician hands you the keys with a sigh, saying, “We got it as close as we could.” The printout shows your caster and camber are still in the red. Why couldn’t they fix it?
The technician isn’t being lazy; they’re limited by the factory hardware. Stock upper control arms offer very little adjustment, if any at all. The alignment cams on the lower control arms can only compensate for minor changes. When you introduce a 2.5- or 3+ inch lift, you’ve moved the geometry so far out of range that no amount of fiddling with the factory cams can bring it back into spec. This is especially true for camber on certain vehicles.
Without the right parts, the shop is faced with an impossible task. They can’t magically add more positive caster or correct the positive camber caused by the lift. The only real solution is to replace the component that’s creating the geometric problem: the stock upper control arm (UCA).
From Symptom to Solution: How Aftermarket UCAs Restore Proper Handling

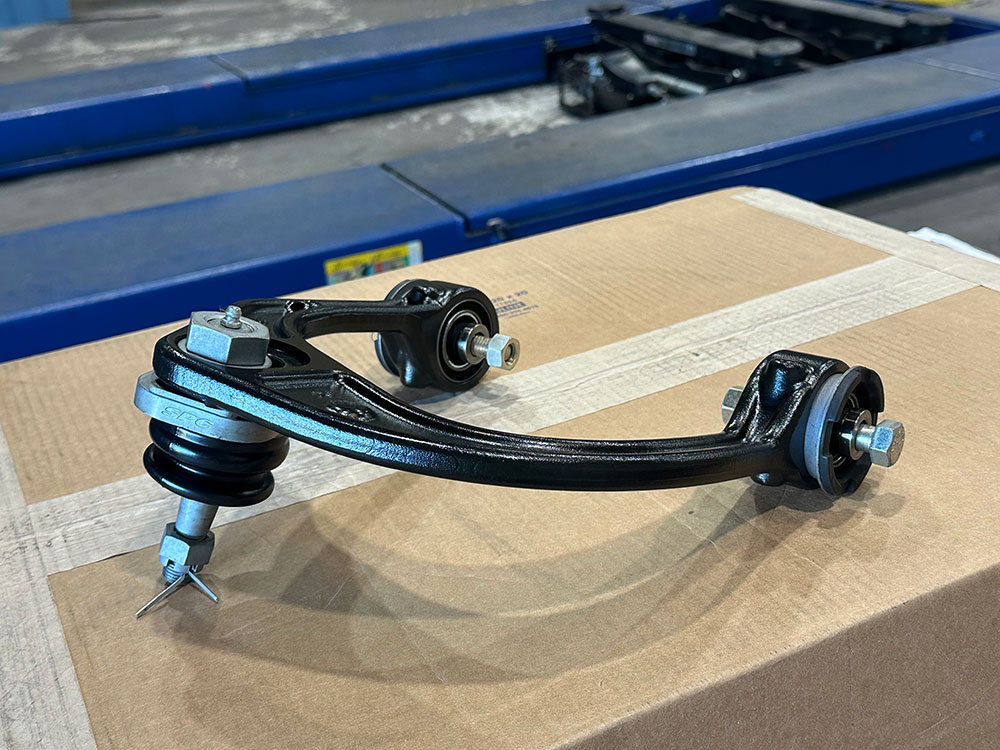

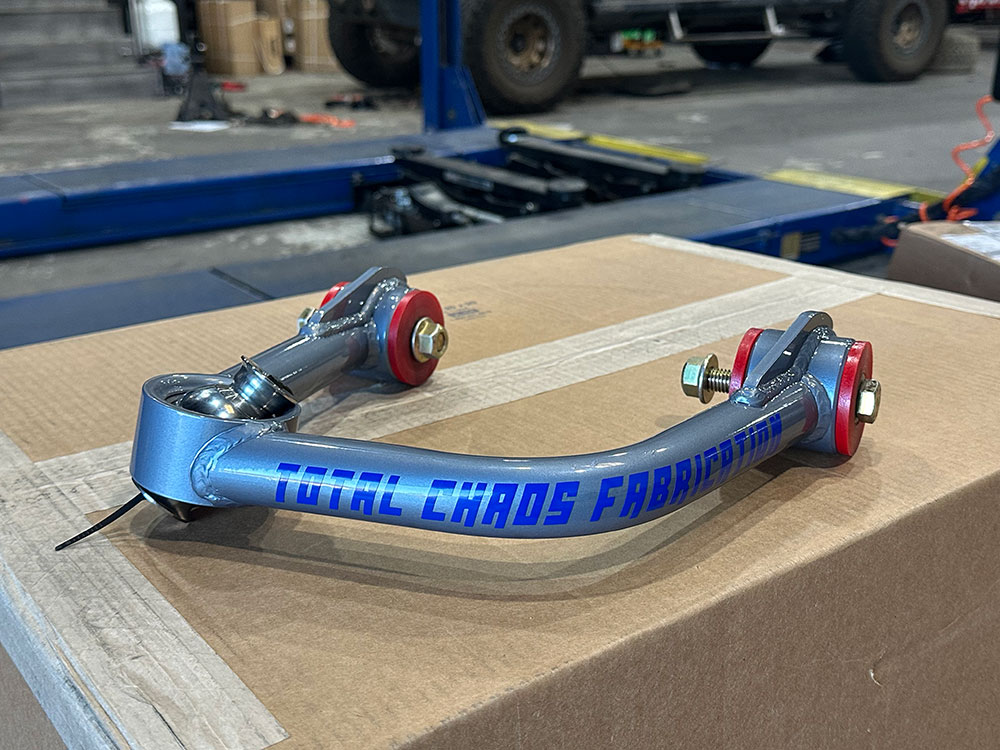

This is where aftermarket upper control arms come in. They are not just beefier versions of the stock part; they are re-engineered to solve the specific geometric problems created by a lift.
Here’s how they fix the issues:
- Caster Correction: Aftermarket UCAs are designed with corrected caster built into their geometry. By repositioning the upper ball joint slightly rearward, they add back the 2 to 4 degrees of positive caster lost during the lift. This single change is what solves highway wander and restores that crisp, on-center steering feel.
- Camber Correction: The altered arc and length of an aftermarket UCA helps pull the top of the tire back inward, correcting the positive camber and allowing the alignment technician to get the vehicle back within factory specifications. This ensures your tires wear evenly across the tread.
- Improved Ball Joint Angle & Increased Travel: The stock ball joint is forced to operate at an extreme angle on a lifted truck. This can lead to ball joint binding, which limits suspension travel (droop) and can cause premature failure. Aftermarket UCAs use high-angle ball joints or uniballs designed for these steeper angles, restoring lost wheel travel and preventing coilover contact or UCA hitting coil spring issues. This is a massive benefit for off-road suspension articulation.
- Increased Clearance: Many aftermarket UCA designs offer better clearance for larger tires and performance coilovers, preventing the tire from rubbing on the control arm at full steering lock—a common problem when trying to fit 35-inch tires.
Head-to-Head: Factory vs. Aftermarket Control Arms
|
Feature |
Factory/Stock Upper Control Arms |
Standard Wheel Alignment Only |
Aftermarket Upper Control Arms |
|---|---|---|---|
|
Best For |
Stock height or very minor lifts (under 1.5 inches). |
A temporary check, but not a solution for a lifted vehicle. |
Lifts of 2 inches or more. |
|
Handling & Steering |
Excellent at stock height. Poor on lifted vehicles (wander, poor return-to-center). |
Cannot correct the root cause of poor handling post-lift. |
Restores factory-like or improved steering response and high-speed stability. |
|
Tire Wear |
Causes premature and uneven tire wear on a lifted truck due to poor alignment. |
Fails to prevent uneven wear as it cannot bring alignment into spec. |
Promotes even tire wear by enabling a proper alignment, protecting your investment. |
|
Suspension Travel |
Can bind and limit droop on a lifted suspension. Risk of ball joint failure. |
Does not address the physical limitations of the stock arm. |
Increases usable wheel travel with high-angle joints, improving off-road performance. |
|
Cost |
No initial cost, but high long-term cost via tire replacement. |
Low cost for the service, but provides no lasting value. |
Upfront investment that pays for itself in tire life and safety. |
The Hidden ROI: How UCAs Prevent Costly Tire Wear
Let’s talk about the upper control arm cost for a lifted truck. Yes, a quality set of forged aluminum or tubular steel UCAs is an investment. But it’s crucial to weigh that against the cost of the problem they solve. A set of high-quality all-terrain or mud-terrain tires can easily cost $1,500 to $2,500 or more. If a bad alignment caused by stock UCAs wears them out 30-50% faster, you could be losing over $1,000 in tire life. Suddenly, the cost of the control arms makes perfect financial sense. Correcting alignment after a leveling kit isn’t just about drivability; it’s about protecting your other investments.
Frequently Asked Questions
Do I need aftermarket upper control arms?
If you have lifted your truck or SUV 2 inches or more, the answer is almost always yes. Below 2 inches, you might be able to get the alignment close enough, but you are still compromising on handling and tire wear. For a 2.5-inch lift, a 3-inch lift, or more, they are not optional—they are a required component for a safe and properly handling vehicle.
What are the benefits of aftermarket upper control arms?
The primary benefits are corrected alignment geometry (caster and camber), which leads to improved drivability, elimination of highway wander, better steering feel, longer and more even tire life, increased suspension travel without binding, and improved overall safety and stability.
Are aftermarket control arms good quality?
Yes, quality aftermarket control arms from reputable brands (like SPC, Camburg, Dirtking, Icon, Total Chaos Fab, etc.) are exceptionally good. They are engineered from stronger materials like forged aluminum or chromoly steel and use superior components like high-angle greasable ball joints or durable uniballs, making them far more robust than the stamped steel factory arms.
Are aftermarket upper control arms legal?
Yes, aftermarket upper control arms are legal in all 50 states. They are considered a replacement suspension component designed to restore proper and safe vehicle geometry, not an item that violates vehicle safety standards.
Making the Right Choice for Your Needs
So, are aftermarket control arms worth it? The answer depends on your specific build and goals.
The Practical Overlander
Your vehicle is your daily driver during the week and your gateway to adventure on the weekend. Reliability, safety, and predictable on-road manners are a priority. For you, aftermarket UCAs are a non-negotiable part of a responsible lift. The corrected geometry ensures your truck is safe and stable for long highway miles to the trailhead, and the investment pays for itself by maximizing the life of your offroad tires.
The Recently Lifted Vehicle Owner
You’re currently experiencing the exact problems we’ve described: the alignment shop couldn’t get your truck in spec, and it feels unstable on the road. For you, the decision is clear. Aftermarket UCAs are the direct solution to your problem. They will transform your truck’s handling from a wandering, stressful experience into a confident, controlled ride.
The Performance-Focused Off-Roader
You’re pushing your vehicle to its limits on challenging terrain. You demand maximum suspension articulation, durability, and high-speed stability. For you, upgrading to uniball control arms or heavy-duty ball joint UCAs is essential. They not only provide the necessary geometric correction but also offer the strength to withstand hard use and the increased travel needed to keep your tires on the ground.
Ultimately, correcting your suspension geometry is one of the most important steps in building a capable and safe lifted vehicle. At Stellar Built, our technicians have seen firsthand the difference that properly engineered components make. We don’t just sell parts; we provide proven solutions that ensure your truck drives as good as it looks. We’re a Toyota / Lexus off-road specialty shop, but we see this often overlooked factor of bad and worn out UCA on most IFS (Independent Front Suspension) equipped trucks and SUVs, not just Toyotas. If you’re questioning your alignment or handling and are ready to fix your truck’s handling for good, contact our team in Sacramento, CA at (916) 882-0333 or send us an inquiry at sales@stellarbuilt.com to schedule a free inspection and if needed, get a proper off-road alignment.
